Navigating Urban Traffic with eKuiper: A Low-Code Approach with Realtime Data Processing

eKuiper Team
Oct 7, 2023
Navigating Urban Traffic with eKuiper: A Low-Code Approach with Realtime Data Processing

Real-time data is becoming a cornerstone in urban planning and traffic management, offering insights that can significantly improve daily commutes. Imagine the frustration of walking to a bike-sharing station, only to find all the bikes are taken or, conversely, no slots available to park your bike. With tools like eKuiper and datasets like CityBikes, we're about to change that narrative. Let's dive in.

eKuiper: Real-Time Data Analysis at the Edge

Our journey of personal traffic analysis starts with an open-source tool: eKuiper. Initiated by EMQX, this open-source marvel is not just lightweight and scalable but also boasts powerful edge computing capabilities. Its SQL-like syntax ensures that even those with a rudimentary understanding of data querying can harness its power. For traffic enthusiasts, eKuiper's real-time data processing provides a granular understanding of road conditions.

Getting Started with eKuiper

To harness eKuiper's capabilities, we first need to set it up. Here's a simplified guide:

Install eKuiper

To install eKuiper, follow the official installation guide. For this tutorial, we'll use Docker deployment, suitable for most users:

docker pull lfedge/ekuiper:latest
docker run -p 9081:9081 -d --name kuiper -e MQTT_SOURCE__DEFAULT__SERVER="tcp://broker.emqx.io:1883" lfedge/ekuiper:latest

Preparing the Datasource in eKuiper

The first step in personal traffic analysis is acquiring the necessary data. With eKuiper's HTTP Pull Source, we can tap into open platforms offering real-time traffic data. In this tutorial, we will use the data from CityBikes API dataset as an example to demonstrate how to fetch the corresponding API data using eKuiper for further processing.

After some preliminary analysis, we found this dataset provides rich shared-bike data for London and santander-cycles is the major player there, so we will focus on this operator.

The URL and parameters of the data interface are as follows:

http://api.citybik.es/v2/networks/santander-cycles

By observing the data returned from the API, we can see that all the data we need is in the array field called stations:

"network": {
        "company": [
            "PBSC",
            "Serco Group plc"
        ],
        "href": "/v2/networks/santander-cycles",
        "id": "santander-cycles",
        "location": {
            "city": "London",
            "country": "GB",
            "latitude": 51.51121389999999,
            "longitude": -0.1198244
        },
        "name": "Santander Cycles",
        "stations": [
            {
                "empty_slots": 15,
                "extra": {
                    "installDate": "1278947280000",
                    "installed": true,
                    "locked": false,
                    "name": "River Street , Clerkenwell",
                    "removalDate": "",
                    "temporary": false,
                    "terminalName": "001023",
                    "uid": 1
                },
                "free_bikes": 4,
                "id": "7f3020118e56165ed8b2f61899edb971",
                "latitude": 51.52916347,
                "longitude": -0.109970527,
                "name": "001023 - River Street , Clerkenwell",
                "timestamp": "2023-08-22T06:54:35.118000Z"
            },
        ]
        ...
}

And this is the explanation of each station field:

Field Description
empty_slots Number of empty slots available at the station.
free_bikes Number of available bikes at the station.
id A unique identifier for the station.
latitude Geographical latitude coordinate of the station.
longitude Geographical longitude coordinate of the station.
name Name of the station.
timestamp The timestamp of the last update.

Now let's try to use the HTTP Pull Source of eKuiper to fetch the message data from the data platform's HTTP server and input it into the eKuiper processing pipeline.

The data preparation in eKuiper can be divided into 2 steps: first configure the HTTP pull stream and then create the HTTP pull stream with the configuration.

Configuring the HTTP Pull Stream in eKuiper

Once installed, eKuiper needs to be configured to pull data from the desired source, in this case, the CityBikes API. This involves setting up the HTTP Pull Source with the correct endpoint and parameters.

  1. Access the Configuration File: Navigate to the eKuiper directory where the configuration files are stored. Locate the httppull.yaml file in the etc/sources/ directory.

  2. Edit the Configuration File: Open the httppull.yaml file in a text editor of your choice.

  3. Update the Configuration: Replace the content of the file with the provided configuration. This configuration sets up a recurring API request to the Santander Cycles API every 10 seconds. It requests JSON data, requires no SSL verification, and handles the response as code.

    default:
      url: 'http://api.citybik.es/v2/networks/santander-cycles'
      method: get
      interval: 10000
      timeout: 5000
      incremental: false
      body: ''
      bodyType: json
      insecureSkipVerify: true
      headers:
        Accept: application/json
      responseType: code

  4. Save the changes.

Creating the STREAM in eKuiper

This section uses Postman for interacting with eKuiper.

  1. Open Postman: Launch the Postman application on your computer.

  2. Set Up the Request:

    • HTTP Method: Select POST from the dropdown menu.
    • URL: Enter the eKuiper API endpoint. Replace {{host}} with the actual host address where eKuiper is running, e.g., http://localhost:9081/streams.
  3. Configure Headers: Click on the Headers tab and set the Content-Type to application/json.

  4. Enter the Request Body: Click on the Body tab, select raw, and paste the following JSON:

    {
      "sql": "CREATE STREAM citybike_data () WITH (TYPE=\"httppull\")"
    }


    Note, we will not define the data schema at this stage.

  5. Send the Request: Click on the Send button to create the STREAM in eKuiper.

  6. Review the Response: After sending the request, you should receive a response from eKuiper, in this case, “Stream citybike_data is created” is returned.

To ensure that the STREAM was created successfully and is fetching data, you can check eKuiper Logs or use an HTTP GET request to verify the stream's creation status, in this case:

### HTTP GET
http://localhost:9081/streams/citybike_data

Using eKuiper's HTTP Pull Source, we can continuously fetch data from CityBikes. This data then enters eKuiper's processing pipeline where it can be analyzed, filtered, and acted upon in real-time.

Data Pre-Processing

Data preprocessing is a crucial step in real-time data analysis. Ensuring that the data is in the right format and structure can significantly impact the accuracy and efficiency of the analysis. As we observed from the previous steps, the stations field is an array within the network, as we want to perform calculations and processing using the UNNEST to return the data from the array as multiple rows.

UNNEST the ARRAY Data

  1. Set Up the Request:

    • HTTP Method: Select POST from the dropdown menu.
    • URL: Enter the eKuiper API endpoint. Replace {{host}} with the actual host address where eKuiper is running, e.g., http://localhost:9081/rules.
  2. Configure Headers: Click on the Headers tab and set the Content-Type to application/json.

  3. Enter the Request Body: Click on the Body tab, select raw, and paste the following. With this request, we will return the stations array data as multiple rows and also add a new memory target/source with the actions field.

    {
      "id": "unnest_station_array",
      "sql": "SELECT unnest(network.stations) FROM citybike_data",
      "actions": [{
        "log": {
        },
        "memory": {
          "topic": "channel/data"
        }
      }]
    }

  4. Send the Request: Click on the Send button to create the RULE in eKuiper.

  5. Review the Response: After sending the request, you should receive a response from eKuiper, in this case, “Rule unnest_station_array was created successfully” is returned.

Create a Memory Stream

We can employ the Memory Source to integrate the results of a prior rule into succeeding rules, thereby establishing a rule pipeline for systematically handling data generated by the preceding rule.

###
POST http://{{host}}/streams
Content-Type: application/json

{"sql": "create stream citybike_data_flatten () WITH (DATASOURCE=\"channel/data\", FORMAT=\"JSON\", TYPE=\"memory\")"}

Now the data is flattened and we can continue our exploration with the data.

Deeper Dive into Bike Availability

With the data ready, we can analyze the data to identify patterns related to bike availability. We want to focus on bike availability insights.

Being able to anticipate the availability of bikes ensures that we can rely on the service for our daily routines or unplanned trips.

We can calculate the bike availability at each station and then forward the analysis result to a public MQTT broker, for example, broker.emqx.io:1883.

{
  "id": "bike_availability",
  "sql": "SELECT name, (free_bikes / (empty_slots + free_bikes)) AS availability FROM citybike_data_flatten WHERE (empty_slots + free_bikes)!= 0",
  "actions": [{
    "log": {
    },
    "mqtt": {
        "server": "broker.emqx.io:1883",
        "topic": "bike/availability",
        "protocolVersion": "3.1.1",
        "qos": 0,
        "retained": false
      }
  }]
}

You can check the running status of your rule with the following command

  • HTTP Method: Select GET from the dropdown menu.
  • URL: Enter the eKuiper API endpoint. Replace {{host}} with the actual host address where eKuiper is running, e.g., http://localhost:9081/rules/rulesID/status, in this case http://localhost:9081/rules/station_proximity_rule/status

View the Bike Availability Insight

Then we can use an MQTT client tool to subscribe to the topic and view the analyzed data, for example, MQTTX.

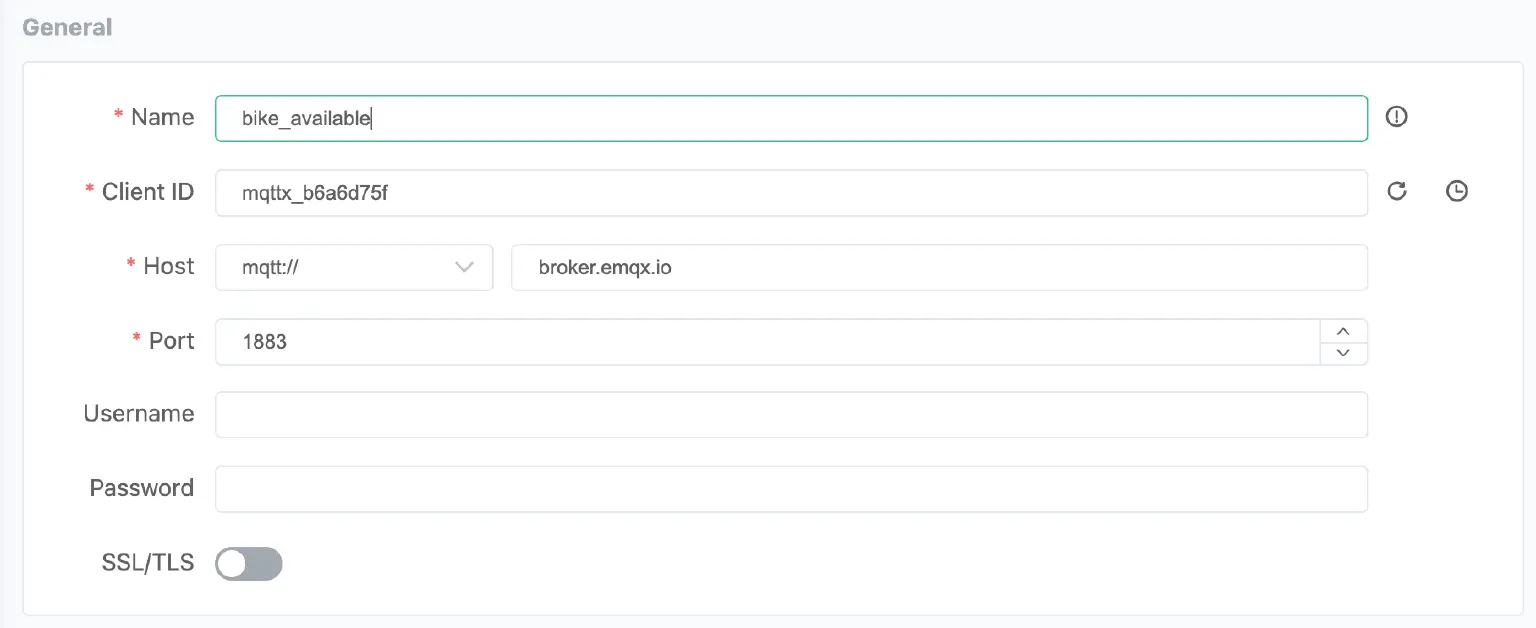

Launch MQTTX, click Add a New Connection, and set it as follows, then click the Connect button to build the connection.

Add a New Connection

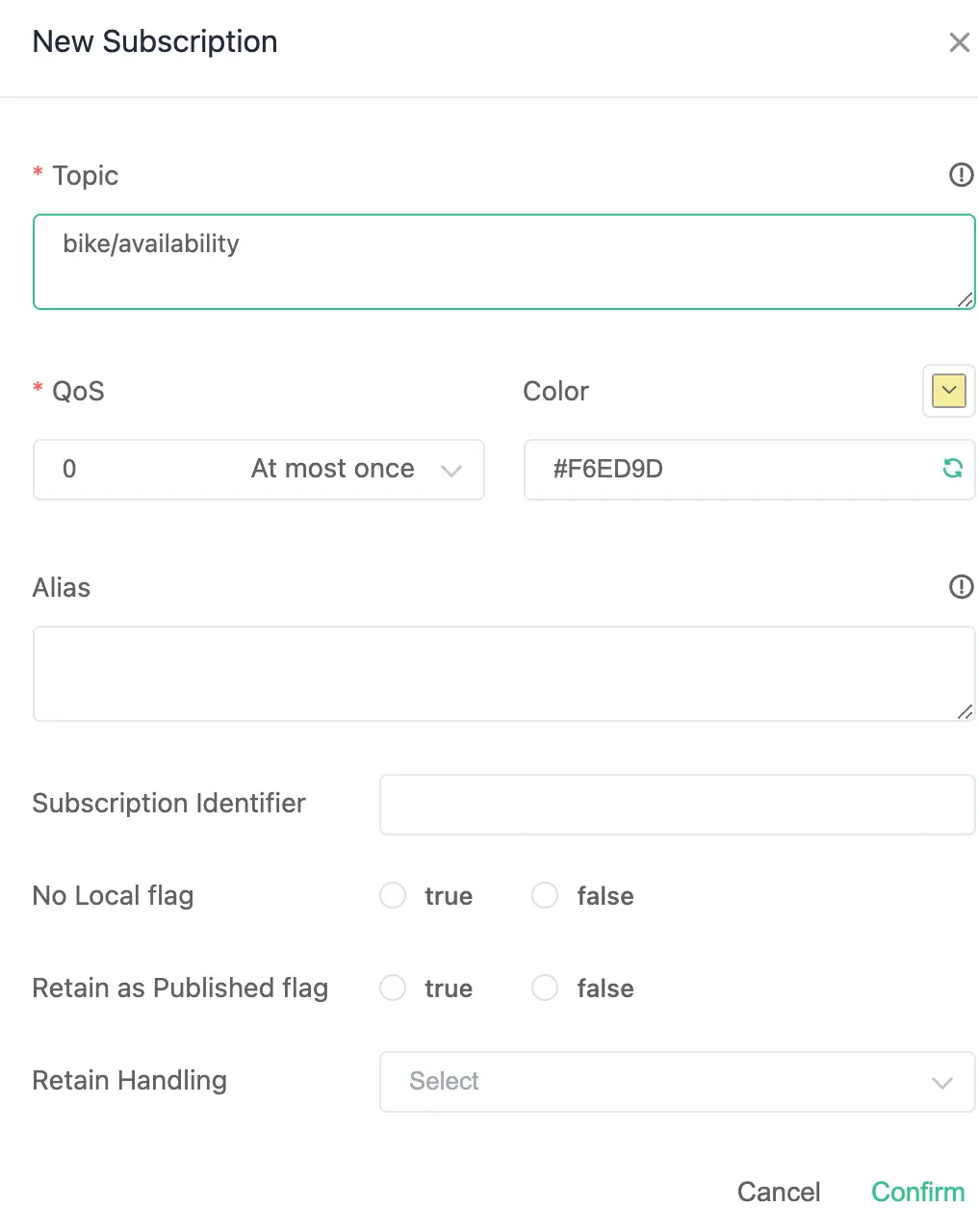

Click + New Subscription and subscribe to the topic we just created.

New Subscription

Then you will be able to see the returned availability information and the site name

returned availability information

Further Explorations with eKuiper

Every commuter is unique. With eKuiper, you can:

  • Create User Profiles: Understand and cater to individual commuting patterns. For example, let eKuiper locate the nearest top 10 shared bike stations.
  • Set Custom Alerts: Stay updated on your favorite stations or routes. For example, let eKuiper only return the stations with over 80% of bikes available.

For those interested in diving deeper into eKuiper's capabilities, the official documentation is a great place to start. The community forums are also a valuable resource for discussions and troubleshooting.

Conclusion: Revolutionizing Urban Commutes

In the urban jungle, the right information can transform your daily commute from a chore to a breeze. With eKuiper, that transformation is not just possible—it's here. Ready to redefine your commute? Try eKuiper and share your experiences and results with us on Twitter or LinkedIn.
