Encapsulating Device Capabilities with MCP over MQTT: Build Your AI Companion Series Part 2

Table of Contents

Chapter Feature Difficulty
1 Overview: Background + Environment Setup + Device Online ★
2 From "Command-Based" to "Semantic Control": MCP over MQTT Encapsulation of Device Capabilities ★★
3 Integrating LLM for "Natural Language → Device Control" ★★
4 Voice I/O: Microphone Data Upload + Speech Recognition + Speech Synthesis Playback ★★★
5 Persona, Emotion, Memory: From "Controller" to "Companion" ★★★
6 Giving the AI "Eyes": Image Acquisition + Multimodal Understanding ★★★

This is the second piece of our “Building Your AI Companion with ESP32 & MCP over MQTT” series.

Recap

In the previous article, we laid the foundational groundwork:

  • Set up the development environment, flashed the ESP32, and successfully connected to an MQTT Broker.
  • Implemented device online heartbeats, allowing the cloud to monitor device presence.
  • Gained an initial understanding of the ESP32 + MQTT IoT communication pattern.

In this article, we'll extend the MQTT foundation from the previous post into an MCP over MQTT architecture. This approach allows various device capabilities to be registered, discovered, and invoked as "Tools," opening up new possibilities for intelligent interaction between AI and IoT devices.

Why MCP for IoT?

Currently, most traditional IoT devices rely on a "command-based control" model:

  • Applications publish commands via hardcoded topics, like esp32/set/brightness, specifying the brightness value in the message body.
  • Each device and each command requires implementing this interface specification. Extending with new features later requires manual code updates.

When AI/LLMs directly interact with IoT devices, the following issues arise:

  • How does AI know what capabilities a device has?
  • How does it understand the format and range of parameters during invocation?
  • How can it control devices as "naturally" as calling a function?

The MCP over MQTT solution effectively addresses these challenges:

  • It provides standardized Tool Schemas, enabling AI to "discover" device capabilities.
  • IoT devices simply declare "what I can do" (e.g., adjust volume, set screen text).
  • AI queries the tool list and invokes tools via MCP, eliminating the need for additional adaptation layers.

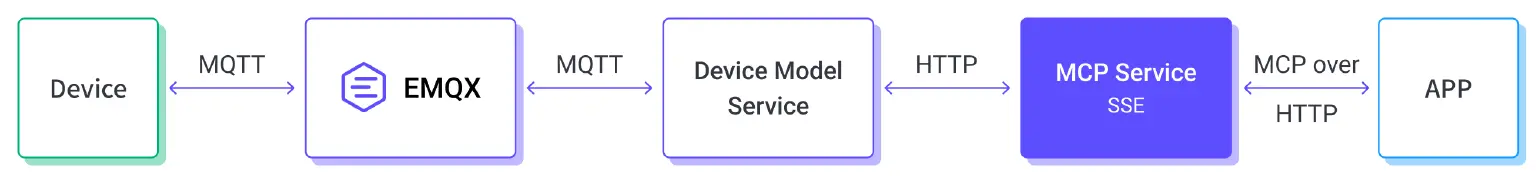

MCP SSE: LLM Interfacing with Devices via Encapsulated HTTP Interfaces

Frame 3468604.png

Currently, MCP primarily interfaces with third-party services via SSE (Server-Sent Events) or standard input/output. The most convenient approach is to reuse existing HTTP interfaces, directly encapsulating device data and control capabilities (like the device model services commonly found in most IoT platforms) as MCP Tools. This solution is particularly suitable for users who already offer device control and status query capabilities via HTTP APIs.

Pros:

  • Rapid Integration: No need for large-scale modifications to already shipped devices; just add an MCP adaptation layer on the server side to quickly integrate with LLMs.
  • High Compatibility: An HTTP interface-adapted MCP layer can seamlessly reuse existing device models and API designs.

Cons:

  • Architectural Redundancy: The LLM and device are separated by an HTTP device model service and an MCP adaptation service, leading to multiple protocol conversions between MQTT and HTTP, increasing latency and reducing real-time performance.
  • Increased Complexity: Multiple adaptation layers make software development and debugging more difficult.
  • Security and Maintenance Pressure: The current SSE solution requires redesigning authentication and authorization mechanisms, as it cannot directly reuse existing IoT platform authentication systems. This brings additional development, maintenance costs, and potential security risks.

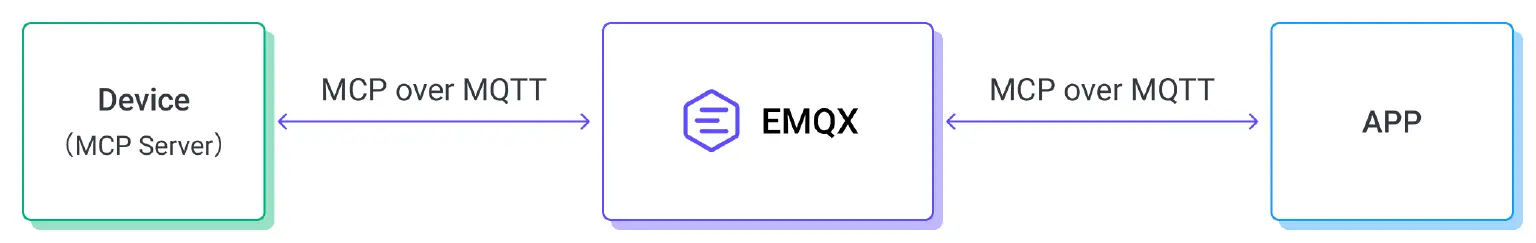

MCP over MQTT: LLM Directly Interfacing with Devices

To address the multi-layer forwarding, latency, and security complexities of the SSE solution, we propose the MCP over MQTT architecture. This approach allows devices to directly register their capabilities via MQTT, enabling LLMs or applications to discover and invoke these capabilities without needing an HTTP device model service or an MCP adaptation layer.

Frame 3468603.png

Pros:

  • Simplified Architecture: Removes the cloud-side "device model service" and "MCP service (SSE)," resulting in a lighter overall communication path.
  • Low-Latency Invocation: Applications or LLMs can directly invoke device-side tools via MQTT, eliminating intermediate forwarding.
  • High Development Efficiency: Reduces protocol conversions and adaptation logic, shortening development and debugging cycles and improving scalability.
  • Centralized Management: MCP service registration, discovery, service type classification, MCP message flow, and permission control are all handled uniformly on the MQTT Broker.
  • Reusable Security: Can directly inherit existing IoT platform authentication and authorization mechanisms, enhancing development efficiency.

Cons:

  • Device Upgrade Required: For already shipped devices without built-in MCP support, a firmware reflash or upgrade is needed if they lack OTA capabilities.
  • Offline Issues: Devices cannot be invoked when offline, requiring the design of offline task caching, failed retry mechanisms, or state synchronization.

MCP SSE vs. MCP over MQTT

Comparison Aspect Solution 1: MCP SSE (Based on HTTP Interface) Solution 2: MCP over MQTT (Native AI Architecture)
Architecture Complexity High: Requires HTTP device model service + MCP adaptation service; redundant protocol stack Low: Devices register tools directly, no intermediate adaptation layer
Invocation Latency Higher: Multiple MQTT ⇄ HTTP protocol conversions Low: Native MQTT communication, shorter invocation chain
Development Cost High: Cloud needs to maintain the device model service and adaptation layer; device capability changes require synchronous updates Low: No extra HTTP interface encapsulation; more efficient development and debugging
Compatibility High: Suitable for existing devices that expose control interfaces via HTTP Medium: Requires device-side upgrade for MCP support (reflash if no OTA)
Security Weaker: Native SSE authentication/permissions are limited; requires extra security mechanism design Stronger: Can directly reuse existing IoT platform authentication and authorization
Scalability Moderate: Each new device capability requires HTTP layer updates Strong: Devices dynamically register tools; LLM can automatically discover capabilities
Real-time Performance Moderate: Higher latency, suitable for non-real-time tasks Strong: Native MQTT architecture, low-latency invocation

Currently, some solutions use HTTP-based WebSocket protocols for device-to-cloud communication. However, MQTT offers more advantages in IoT scenarios, particularly in terms of protocol lightweightness, transmission efficiency, and low power consumption.

Readers can refer to this article for a detailed comparison of the two.

Tutorial: Encapsulating Device Capabilities with MCP over MQTT

Goal: Encapsulate volume adjustment and screen display functionalities using MCP over MQTT.

Hardware:

  • ESP32 S3 Development Board
  • Audio Amplifier (2-3W) and Speaker
  • SPI Interface LCD Display

Software:

  • Develop two MCP Tools on the ESP32 and register them with EMQX Serverless:
    • display: For adjusting display content.
    • set_volume: For adjusting volume, with a parameter range of 0 - 100.
  • Develop an MCP Client in Python on the cloud:
    • List registered tools from the device side.
    • View tool descriptions.

ESP32 MCP Tool Implementation Code (C Language)

MCP over MQTT SDK

Download the MCP over MQTT SDK component.

#include <stdio.h>
#include "freertos/FreeRTOS.h"
#include "esp_log.h"
#include "esp_system.h"
#include "nvs_flash.h"
#include "mcp.h"
#include "mcp_server.h"
#include "wifi.h"
const char *set_volume(int n_args, property_t *args)
{
    if (n_args < 2) {
        return "At least two arguments are required";
    }
    for (int i = 0; i < n_args; i++) {
        if (args[i].type != PROPERTY_INTEGER) {
            return "All arguments must be integers";
        }
        ESP_LOGI("mcp server", "Setting volume to: %lld\n",
                 args[i].value.integer_value);
    }
    return "Volume set successfully";
}
const char *display(int n_args, property_t *args)
{
    if (n_args < 1) {
        return "At least one argument is required";
    }
    for (int i = 0; i < n_args; i++) {
        if (args[i].type != PROPERTY_STRING) {
            return "All arguments must be strings";
        }
        ESP_LOGI("mcp server", "Display: %s\n", args[i].value.string_value);
    }
    return "Message displayed successfully";
}
void app_main(void)
{
    esp_err_t ret = nvs_flash_init();
    if (ret == ESP_ERR_NVS_NO_FREE_PAGES ||
        ret == ESP_ERR_NVS_NEW_VERSION_FOUND) {
        ESP_ERROR_CHECK(nvs_flash_erase());
        ret = nvs_flash_init();
    }
    ESP_ERROR_CHECK(ret);
    wifi_station_init("wifi_ssid", "wifi_password");
    vTaskDelay(pdMS_TO_TICKS(1000));
    mcp_server_t *server = mcp_server_init(
        "ESP32 Demo Server", "A demo server for ESP32 using MCP over MQTT",
        "mqtt://broker.emqx.io", "esp32-demo-server-client", NULL, NULL, NULL);
    mcp_tool_t tools[] = {
        { .name           = "set_volume",
          .description    = "Set the volume of the device, range 1 to 100",
          .property_count = 1,
          .properties =
              (property_t[]) {
                  { .name                = "volume",
                    .description         = "Volume level",
                    .type                = PROPERTY_INTEGER,
                    .value.integer_value = 30 },
              },
          .call = set_volume },
        { .name           = "display",
          .description    = "Display a message on the device",
          .property_count = 1,
          .properties =
              (property_t[]) {
                  { .name               = "message",
                    .description        = "Message to display",
                    .type               = PROPERTY_STRING,
                    .value.string_value = "Hello, MCP!" },
              },
          .call = display },
    };
    mcp_server_register_tool(server, sizeof(tools) / sizeof(mcp_tool_t), tools);
    mcp_server_run(server);
}

The code above implements a simple MCP Server using MCP over MQTT, declaring two Tools. After connecting to the MQTT server, these two tools are registered. When an MCP Client comes online, it can retrieve these registered tools from the MCP Server and initiate connections and invoke related interfaces.

In the mcp_server_init function:

  • You can change mqtt://broker.emqx.io to the server address you obtained from EMQX Serverless.
  • Update the username, password, and cert according to your Serverless configuration.

The mcp_server.h header file defines the MCP over MQTT interfaces for ESP32. We will later incorporate this implementation into standard ESP libraries for easier user development of MCP services. For more detailed code, refer to: ESP32 Demo.

Cloud MCP Client (Python Language)

On the cloud side, we provide the MCP over MQTT Python Client SDK. Download here.

Then, refer to examples/clients/mqtt-clients/client_apis_demo.py.

import logging
import anyio
import mcp.client.mqtt as mcp_mqtt
from mcp.shared.mqtt import configure_logging
configure_logging(level="DEBUG")
logger = logging.getLogger(__name__)
async def on_mcp_server_discovered(client, server_name):
    logger.info(f"Discovered {server_name}, connecting ...")
    await client.initialize_mcp_server(server_name)
async def on_mcp_connect(client, server_name, connect_result):
    capabilities = client.get_session(server_name).server_info.capabilities
    logger.info(f"Capabilities of {server_name}: {capabilities}")
    if capabilities.prompts:
        prompts = await client.list_prompts(server_name)
        logger.info(f"Prompts of {server_name}: {prompts}")
    if capabilities.resources:
        resources = await client.list_resources(server_name)
        logger.info(f"Resources of {server_name}: {resources}")
        resource_templates = await client.list_resource_templates(server_name)
        logger.info(f"Resources templates of {server_name}: {resource_templates}")
    if capabilities.tools:
        toolsResult = await client.list_tools(server_name)
        tools = toolsResult.tools
        logger.info(f"Tools of {server_name}: {tools}")
async def on_mcp_disconnect(client, server_name):
    logger.info(f"Disconnected from {server_name}")
async def main():
    async with mcp_mqtt.MqttTransportClient(
        "test_client",
        auto_connect_to_mcp_server = True,
        on_mcp_server_discovered = on_mcp_server_discovered,
        on_mcp_connect = on_mcp_connect,
        on_mcp_disconnect = on_mcp_disconnect,
        mqtt_options = mcp_mqtt.MqttOptions(
            host="broker.emqx.io",
        )
    ) as client:
        await client.start()
        while True:
            logger.info("Other works while the MQTT transport client is running in the background...")
            await anyio.sleep(10)
if __name__ == "__main__":
    anyio.run(main)

This code implements an MCP Client using the MCP over MQTT SDK. It connects to the MQTT server and waits for the MCP Server to connect and register. Once the MCP Server is registered, the client retrieves and displays the Tools and Resources supported by the MCP Server, based on its capabilities.

In the async def main(): function, you can change broker.emqx.io to the server address you obtained from EMQX Serverless.

        mqtt_options = mcp_mqtt.MqttOptions(
            host="broker.emqx.io",
        )

Debugging and Verification

# Start the MCP Client to connect it to the MQTT Broker
$ uv run examples/clients/mqtt-clients/client_apis_demo.py
# Compile and flash the MCP Demo to your ESP32 device
$ idf.py build & idf.py flash
# Monitor the ESP32 output
$ idf.py monitor

ESP32 Program Output

I (789) wifi:dp: 1, bi: 102400, li: 3, scale listen interval from 307200 us to 307200 us
I (789) wifi:set rx beacon pti, rx_bcn_pti: 0, bcn_timeout: 25000, mt_pti: 0, mt_time: 10000
I (819) wifi:AP's beacon interval = 102400 us, DTIM period = 1
I (959) wifi:<ba-add>idx:0 (ifx:0, 80:3f:5d:f1:ab:4a), tid:0, ssn:3, winSize:64
I (3849) esp_netif_handlers: sta ip: 192.168.10.130, mask: 255.255.255.0, gw: 192.168.10.1
I (3849) wifi sta: ip: 192.168.10.130, mask: 255.255.255.0, gateway: 192.168.10.1
I (3849) wifi sta: connected to ap SSID: wifi_ssid
I (4849) mcp_server: Registered tool: set_volume
I (4849) mcp_server: Registered tool: display
I (4849) mcp_server: Connecting to MQTT broker: mqtt://broker.emqx.io
I (4849) main_task: Returned from app_main()
I (12399) mcp_server: MQTT client connected
I (12809) mcp_server: MCP client initialized: mqtt_client_demo
I (13229) mcp_server: tools/list request received from $mcp-rpc/mqtt_client_demo/esp32-demo-server-client/ESP32 Demo Server

Python Program Awaiting MCP Server Connection and Initialization Logs

2025-07-30 02:15:47,009 - Connected to MQTT broker_host at broker.emqx.io:1883
2025-07-30 02:15:47,065 - Received message on topic $mcp-server/presence/esp32-demo-server-client/ESP32 Demo Server: {"jsonrpc":"2.0","method":"notifications/server/online","params":{"server_name":"ESP32 Demo Server","description":"A demo server for ESP32 using MCP over MQTT","meta":{"rbac":{"roles":[]}}}}
2025-07-30 02:15:47,066 - Server ESP32 Demo Server with id esp32-demo-server-client is online
2025-07-30 02:15:47,068 - Discovered ESP32 Demo Server, connecting ...
2025-07-30 02:15:47,123 - Subscribed to topics for server_name: ESP32 Demo Server, server_id: esp32-demo-server-client
2025-07-30 02:15:47,124 - Created new session for server_id: esp32-demo-server-client
2025-07-30 02:15:47,124 - initialize: ESP32 Demo Server
2025-07-30 02:15:47,126 - Got msg from session for server_id: esp32-demo-server-client, msg: root=JSONRPCRequest(method='initialize', params={'protocolVersion': '2024-11-05', 'capabilities': {'sampling': {}, 'roots': {'listChanged': True}}, 'clientInfo': {'name': 'mcp', 'version': '0.1.0'}}, jsonrpc='2.0', id=0)
2025-07-30 02:15:47,127 - Received message on topic $mcp-rpc/mqtt_client_demo/esp32-demo-server-client/ESP32 Demo Server: {"jsonrpc":"2.0","id":2,"error":{"code":-32601,"message":"Method not found"}}
2025-07-30 02:15:47,128 - Sending msg to session for server_id: esp32-demo-server-client, msg: root=JSONRPCError(jsonrpc='2.0', id=2, error=ErrorData(code=-32601, message='Method not found', data=None))
2025-07-30 02:15:49,390 - Received message on topic $mcp-rpc/mqtt_client_demo/esp32-demo-server-client/ESP32 Demo Server: {"jsonrpc":"2.0","id":0,"result":{"protocolVersion":"2024-11-05","serverInfo":{"name":"mcp","version":"0.0.1"},"capabilities":{"tools":{"listChanged":true}}}}
2025-07-30 02:15:49,393 - Sending msg to session for server_id: esp32-demo-server-client, msg: root=JSONRPCResponse(jsonrpc='2.0', id=0, result={'protocolVersion': '2024-11-05', 'serverInfo': {'name': 'mcp', 'version': '0.0.1'}, 'capabilities': {'tools': {'listChanged': True}}})
2025-07-30 02:15:49,399 - Got msg from session for server_id: esp32-demo-server-client, msg: root=JSONRPCNotification(method='notifications/initialized', params=None, jsonrpc='2.0')
2025-07-30 02:15:49,399 - Session initialized for server_id: esp32-demo-server-client

Python Program Retrieving MCP Server Capabilities and Supported Tools Logs

2025-07-30 02:15:49,402 - Capabilities of ESP32 Demo Server: experimental=None logging=None prompts=None resources=None tools=ToolsCapability(listChanged=True)
2025-07-30 02:15:49,405 - Got msg from session for server_id: esp32-demo-server-client, msg: root=JSONRPCRequest(method='tools/list', params=None, jsonrpc='2.0', id=1)
2025-07-30 02:15:49,538 - Received message on topic $mcp-rpc/mqtt_client_demo/esp32-demo-server-client/ESP32 Demo Server: {"jsonrpc":"2.0","id":1,"result":{"tools":[{"name":"set_volume","description":"Set the volume of the device, range 1 to 100","inputSchema":{"type":"object","properties":{"volume":{"description":"Volume level","type":"integer"}},"required":["volume"]}},{"name":"display","description":"Display a message on the device","inputSchema":{"type":"object","properties":{"message":{"description":"Message to display","type":"string"}},"required":["message"]}}]}}
2025-07-30 02:15:49,541 - Sending msg to session for server_id: esp32-demo-server-client, msg: root=JSONRPCResponse(jsonrpc='2.0', id=1, result={'tools': [{'name': 'set_volume', 'description': 'Set the volume of the device, range 1 to 100', 'inputSchema': {'type': 'object', 'properties': {'volume': {'description': 'Volume level', 'type': 'integer'}}, 'required': ['volume']}}, {'name': 'display', 'description': 'Display a message on the device', 'inputSchema': {'type': 'object', 'properties': {'message': {'description': 'Message to display', 'type': 'string'}}, 'required': ['message']}}]})
2025-07-30 02:15:49,544 - Tools of ESP32 Demo Server: [Tool(name='set_volume', description='Set the volume of the device, range 1 to 100', inputSchema={'type': 'object', 'properties': {'volume': {'description': 'Volume level', 'type': 'integer'}}, 'required': ['volume']}), Tool(name='display', description='Display a message on the device', inputSchema={'type': 'object', 'properties': {'message': {'description': 'Message to display', 'type': 'string'}}, 'required': ['message']})]

If you can see this information, congratulations! You've completed this task: your device services are encapsulated via MCP, and the cloud can discover and display them.

Coming Up Next

In the next article, we'll enable LLMs to directly invoke these MCP Tools, controlling volume and displaying information through natural language. This is where the journey of injecting "soul" into hardware with AI truly begins!

Resources

Talk to an Expert
Contact Us →
ESP32MCP over MQTT
Edit
Rocky Jin

Rocky Jin

EMQX Kuiper open source project initiator.

Subscribe to our blogs

Related Posts
