MQTT Performance Benchmark Testing: EMQX Single Node Supports 5M Connections

In this post, we provide the benchmarking result of EMQX connection - a single node EMQX processes 5M concurrent connections.

Test Scenario

This benchmark testing simulates 5,000,000 MQTT clients connecting to EMQX, with a connection rate of 5,000 per second.

  • Concurrent connections: 5,000,000
  • Connection rate: 5000/s
  • Authentication: no
  • Keep alive: 300s
  • Clean session: true

Testbed

The test environment is configured on Alibaba Cloud, and all virtual machines are within a VPC (virtual private cloud) subnet.

Machine Details:

Service Deployment Version OS CPU Memory Cloud Host model
EMQX single node 5.0.21 RHEL 8.5 64C 128G hfc6.16xlarge

Test Tool

XMeter is used in this benchmark test to simulate MQTT clients. XMeter is built on top of JMeter but with enhanced scalability and more capabilities. It provides comprehensive and real-time test reports during the test. Additionally, its built-in monitoring tools are used to track the resource usage of the EMQX machines.

XMeter provides a private deployment version (on-premise) and a public cloud SaaS version. A private XMeter is deployed in the same VPC as the EMQX in this testing.

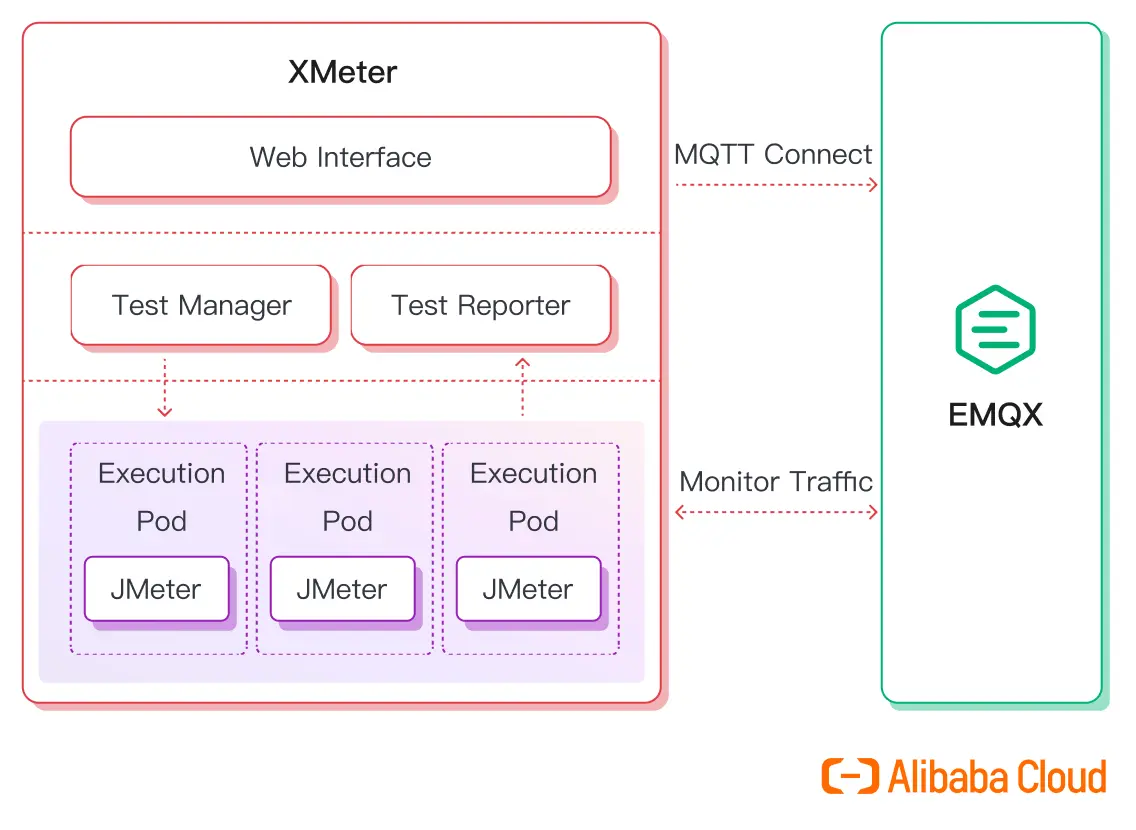

MQTT Benchmark Architecture

System Tuning

Please refer to EMQX Doc for the Linux Kernel tuning.

Benchmark Results

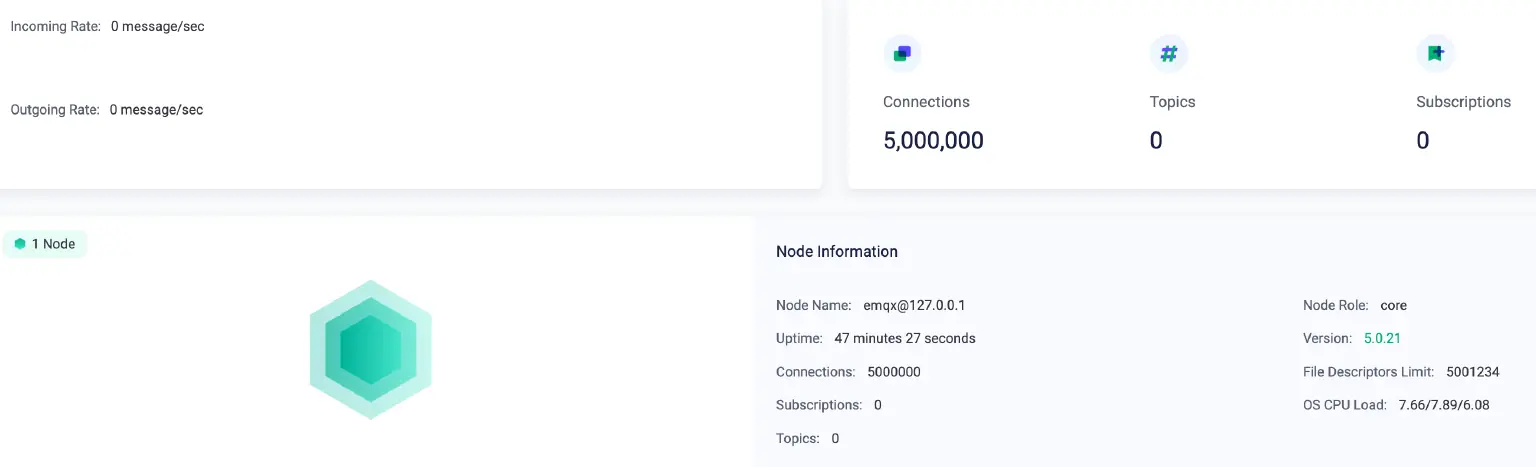

EMQX dashboard illustrates that over 5M concurrent connections are achieved, and the connection is rather stable throughout the 30-minute’s test.

Benchmark Results

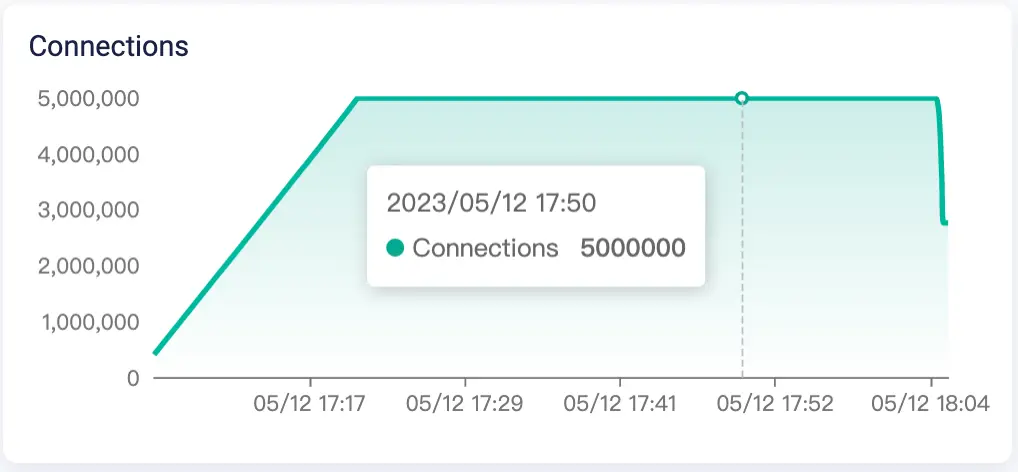

MQTT Connections

Metrics

Average of connect response time 2.93ms
Average of CPU usage 14%
Max of CPU usage 40%
Average of memory usage after all clients are connected 48.7GB
Max of memory usage 51.4GB

Wrapping up

This benchmark report demonstrates the robust concurrent connectivity performance of EMQX in a single-node deployment. It shows that EMQX can help users build larger scale IoT applications while using fewer machines, helping to reduce your total cost of ownership.
