MQTT Performance Benchmark Testing: EMQX Single Node Message Latency & Response Time

EMQX Team
Aug 26, 2023
MQTT Performance Benchmark Testing: EMQX Single Node Message Latency & Response Time

Background

In this blog, we provide the benchmarking result of EMQX message latency and response time.

Test Scenario

This benchmark testing simulates 1000 publishers and 1000 subscribers connecting to EMQX. After all connections are established, each publisher publishes 1 message with the payload of 50 bytes per second, execute 30 mins to get the average value.

  • Concurrent connections: 1000 publishers, 1000 subscribers

  • QoS: Tests messages at the QoS 0, QoS 1, and QoS 2 levels

  • Payload: 50 bytes

  • Message Throughput: 1000/second

Testbed

The test environment is configured on Alibaba Cloud, and all virtual machines are within a VPC (virtual private cloud) subnet.

Machine Details

Service Deployment Version OS CPU Memory Cloud Host model
EMQX single node 5.0.6 RHEL 8.5 2C 4G c6.large

Test Tool

XMeter is used in this benchmark test to simulate MQTT clients. XMeter is built on top of JMeter but with enhanced scalability and more capabilities. It provides comprehensive and real-time test reports during the test. Additionally, its built-in monitoring tools are used to track the resource usage of the EMQX machines.

XMeter provides a private deployment version (on-premise) and a public cloud SaaS version. A private XMeter is deployed in the same VPC as the EMQX in this testing.

Test Architecture Diagram

System Tuning

Please refer to EMQX Doc for the Linux Kernel tuning.

Benchmark Results

Define

  • Latency: the time taken by a broker to transmit a message from a publisher to a subscriber.

  • Response time: the time difference between msg received and msg sent.

Metrics

QoS 0 QoS 1 QoS 2
Latency (ms) 0.048 0.065 0.07
response time (ms) 1.7 1.7 1.7

XMeter Report Chart

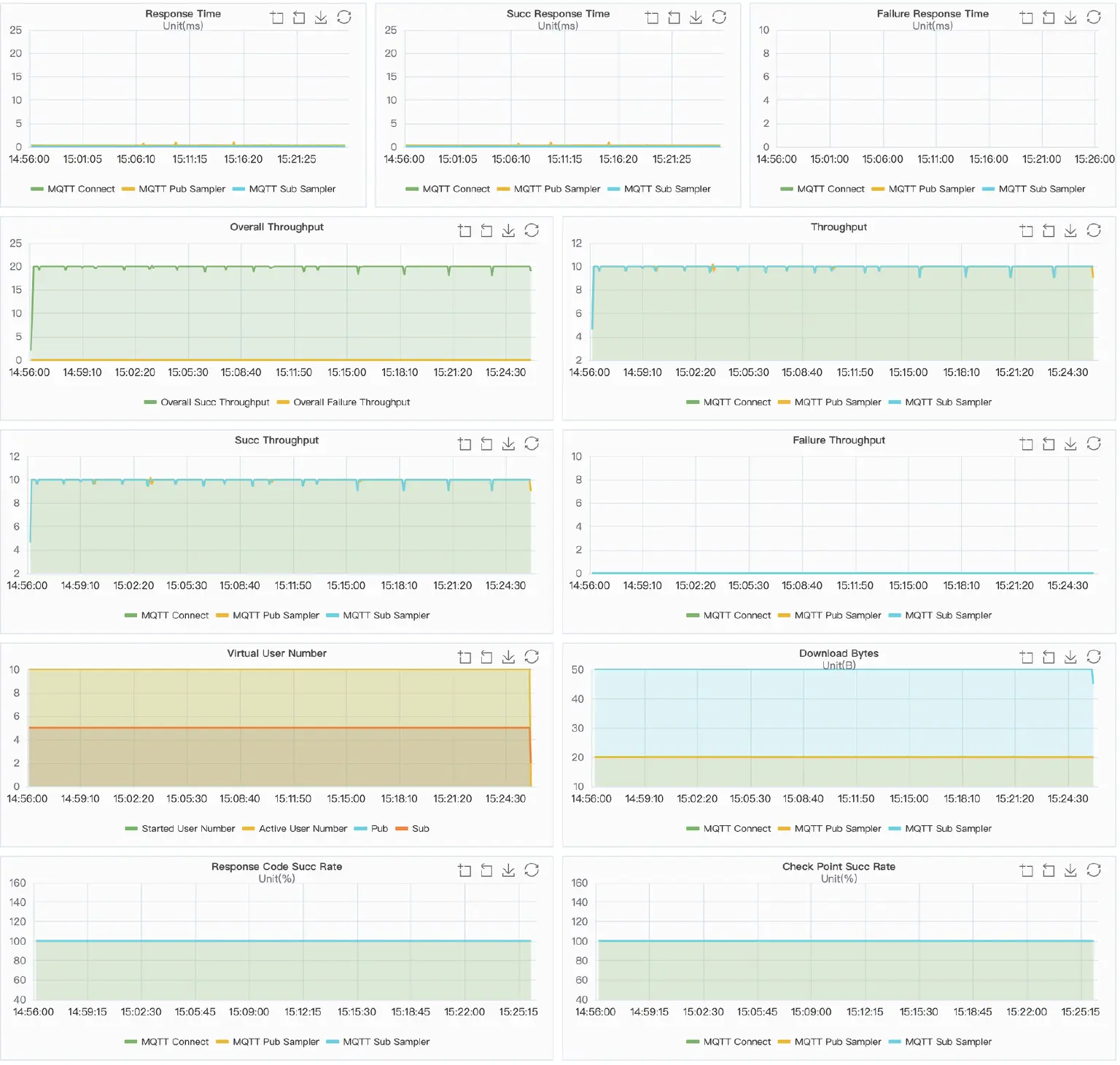

QoS 0

XMeter Report Chart QoS 0

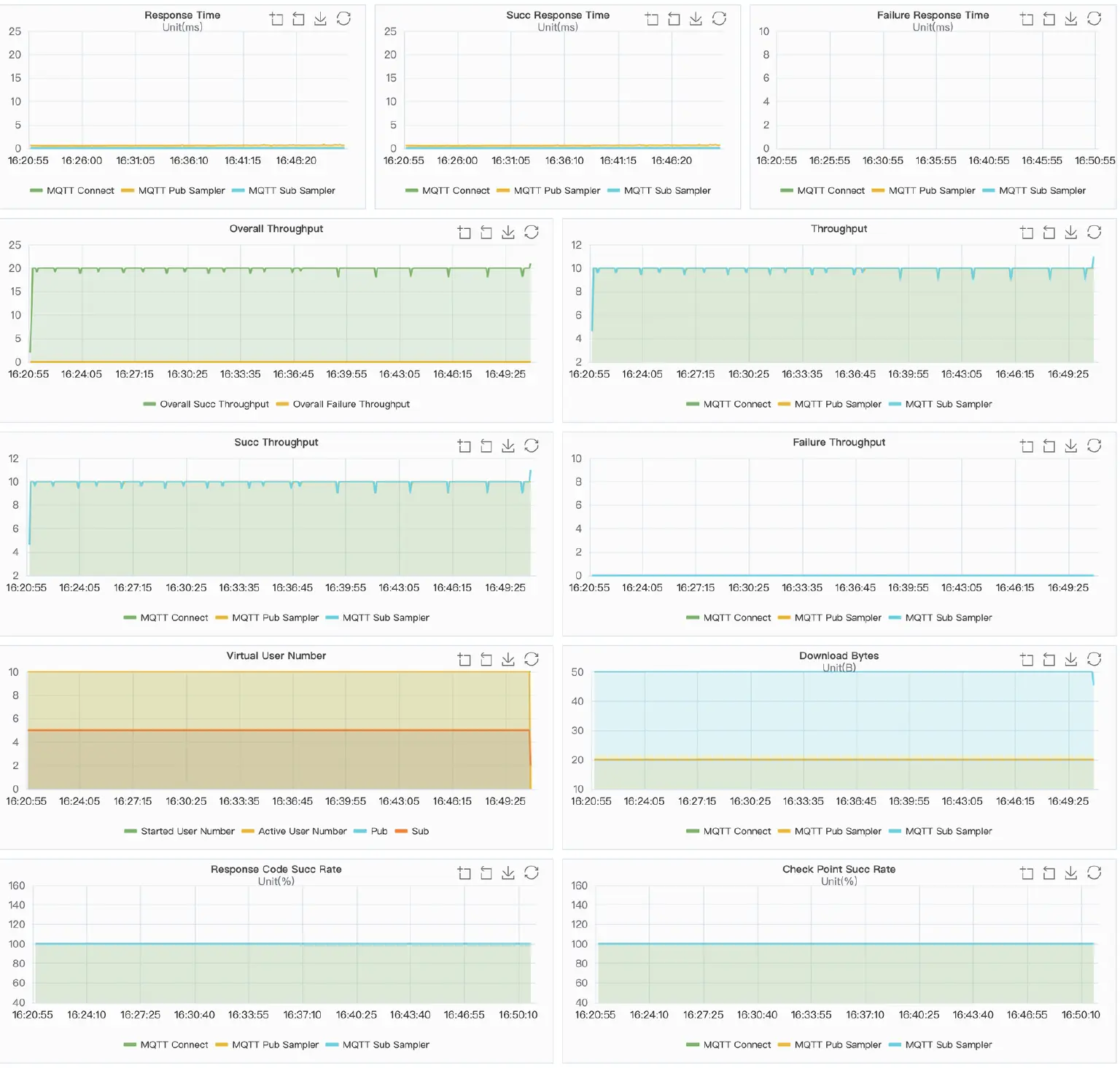

QoS 1

XMeter Report Chart QoS 1

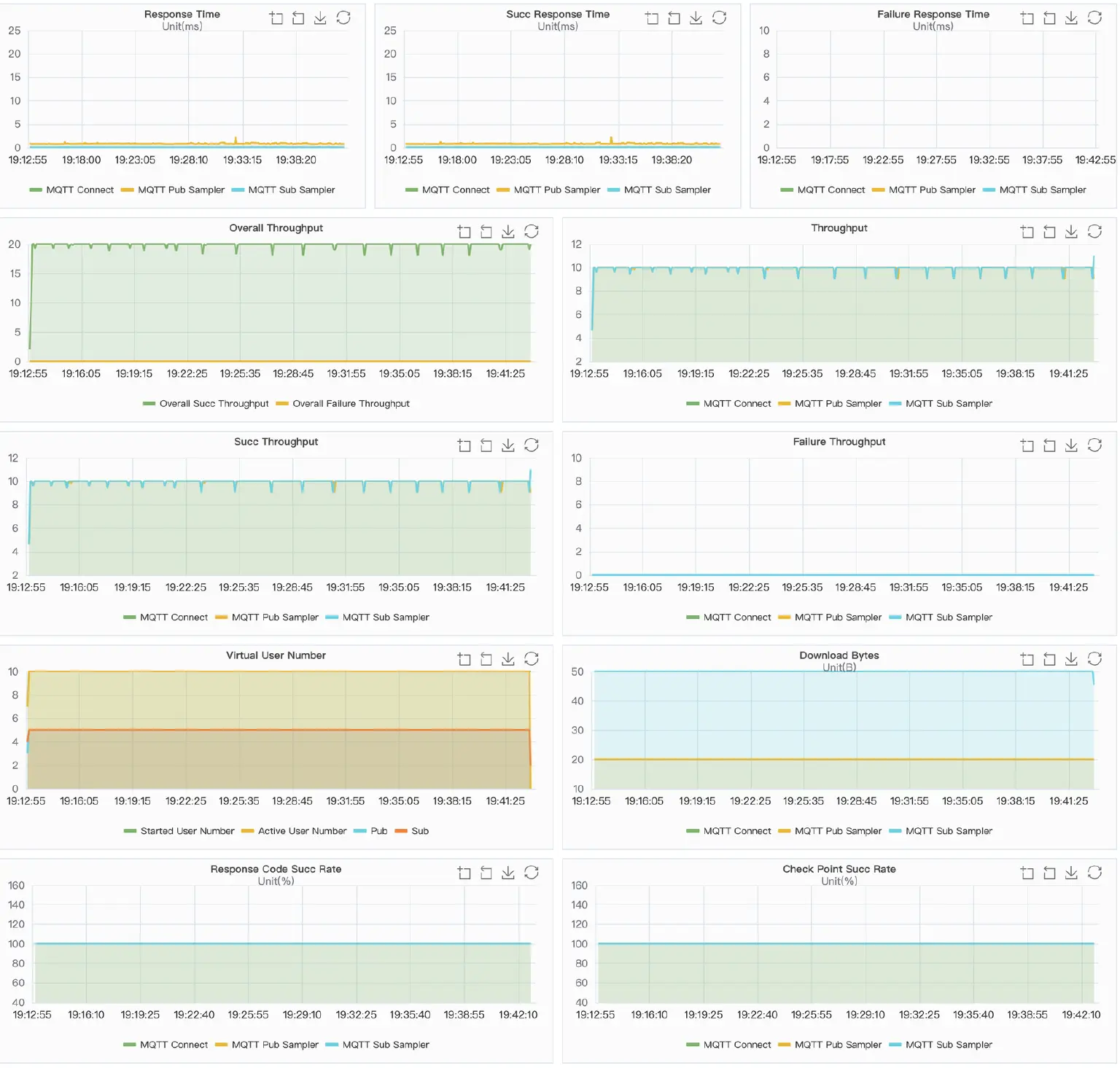

QoS 2

XMeter Report Chart QoS 2

Wrapping up

This is a low load test and the results show that EMQX has very low message latency. In fact, EMQX is able to maintain its low latency even with a large number of messages. These results indicate that EMQX can be a valuable tool in IoT applications that require a high level of real-time responsiveness.
