Online MQTT Client: Benefits and A Beginner's Guide

MQTTX Team
Apr 22, 2024
Online MQTT Client: Benefits and A Beginner's Guide

What is Online MQTT Client

Online MQTT clients are web-based applications that allow for easy connection to MQTT brokers, facilitating the testing of message subscriptions and publishing. These applications use MQTT over WebSocket for a stable, real-time connection without requiring software installations.

Accessibility is a key feature; users only need a URL to access these tools in the browser. Upon visiting the web page, entering minimal configuration details connects them to an MQTT broker, streamlining the process of exploring MQTT functionalities.

Benefits of Online MQTT Client

Online MQTT clients empower users to quickly and effortlessly grasp and utilize MQTT, enhancing the development and efficient debugging of MQTT applications and services. Here's how they stand out:

  1. Ease of Use: They feature user-friendly UIs and GUI operations, making them accessible to users of all skill levels for immediate use and exploration of MQTT functionalities.
  2. No Installation Required: These web-based clients eliminate the need for software downloads or installations. Users can access the full capabilities through a simple URL.
  3. Cross-Platform Compatibility: Because they are browser-based, online MQTT clients work across all operating systems, ensuring a seamless experience regardless of the device used.
  4. Real-Time Testing: Leveraging the WebSocket API, they can test MQTT communications in real-time, providing immediate feedback crucial for rapid development cycles.
  5. Comprehensive Protocol Support: They fully support all versions of the MQTT protocol, ensuring that users can work with the specific MQTT features and capabilities they need without compromise.

These advantages make online MQTT clients an invaluable tool for anyone looking to develop or debug MQTT-based systems with speed, simplicity, and flexibility. Leveraging a Free Public MQTT Broker, such as the broker.emqx.io built with a global multi-region geo-distributed EMQX Cluster, users can conveniently learn and understand MQTT usage, validate feature prototypes, and test message data. This greatly facilitates the development and testing process, making starting easy.

MQTTX Web: Leading Online MQTT Client for MQTT testing

Introduction

In the landscape of online MQTT clients, MQTTX Web stands out as a key player. It's essentially the browser-based version of MQTTX, bringing its robust functionality directly into your web environment.

MQTTX Web is an open-source MQTT 5.0 browser client and an online MQTT WebSocket client tool. Utilizing WebSocket enables direct connection to MQTT brokers through your browser, streamlining the development and debugging of MQTT services and applications. This eliminates downloading and installing MQTTX locally, accelerating your workflow.

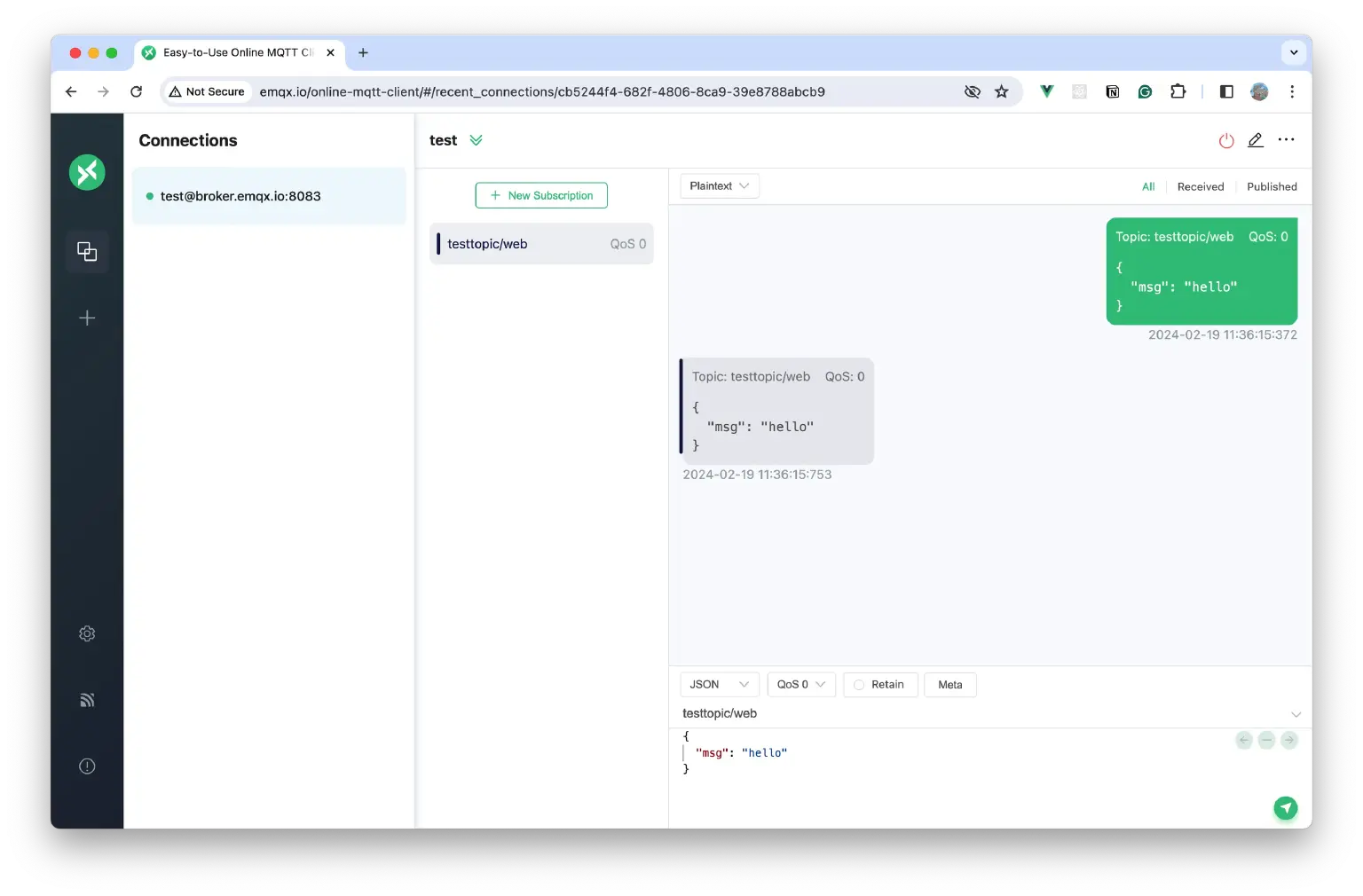

Online MQTT Client

Get started with MQTTX Web by visiting: https://mqttx.app/web-client/

The source code is available on GitHub at: https://github.com/emqx/MQTTX/tree/main/web

Key Features

MQTTX Web is a powerful tool for anyone looking to engage with MQTT protocols efficiently. Here are its standout features:

  • 100% Open Source: It is freely available under the Apache 2.0 license, welcoming contributions and modifications from the community.
  • Browser-Based Convenience: Accessible directly in your web browser without downloading or installing. It's ready to use the moment you open it.
  • User-Friendly Interface: It boasts an intuitive chat box interface for sending and receiving MQTT messages effortlessly. It also supports multiple UI themes and internationalization, including Chinese, English, and Japanese.
  • Comprehensive Protocol Compatibility: Supports MQTT v3.1.1 and the latest MQTT v5.0 protocols, ensuring full compliance with the latest standards for broad application compatibility.
  • WebSocket Support: Ensures a smooth, real-time connection to MQTT brokers over WebSockets, facilitating instant communication.
  • Data Format Support: Supports various data formats for sending or receiving messages, including JSON, Hex, base64, and plaintext. This allows for easy conversion and handling of different types of data payloads.
  • Docker Support: It facilitates private deployment through Docker, with support for custom configurations and the ability to specify deployment path URLs. This flexibility makes it convenient for users to integrate MQTTX Web into their services and applications, ensuring seamless adoption and usage within various environments.

How to Use MQTTX Web

MQTTX Web offers flexibility: choose the access method that best suits your needs, whether online for immediate use or private deployment for a customized experience.

Online Use

Simply open the URL https://mqttx.app/web-client/ in any web browser to get started.

Private Deployment

For a setup tailored to your needs, MQTTX Web offers two main approaches for private deployment:

Using Docker:

  1. Pull the Docker Image: Start by pulling the latest MQTTX Web Docker image from the repository:

    docker pull emqx/mqttx-web

  2. Run the Docker Image: Launch your MQTTX Web instance:

    docker run -d --name mqttx-web -p 80:80 emqx/mqttx-web


Building from Source:

If you prefer to customize your MQTTX Web instance further, follow these steps:

  1. Clone the Source Code: Visit the MQTTX GitHub repository and clone the source code.

  2. Configuration: Customize your instance by adjusting settings in the .env configuration file. Key configurable options include:

    • VUE_APP_PAGE_TITLE and VUE_APP_PAGE_DESCRIPTION for setting the webpage title and description.
    • VUE_APP_DEFAULT_HOST for setting the default MQTT broker address.
    • BASE_URL and VUE_APP_OUTPUT_DIR for configuring the base URL and output directory of the build.
  3. Build for Docker: Compile and compress for production version suited for Docker containerization:

    yarn run build:docker


    Build the Docker image:

    docker build -t mqttx-web .


    Run your custom Docker image:

    docker run -p 80:80 mqttx-web


These steps ensure you can deploy MQTTX Web in a manner that best fits your project's requirements, from simple Docker runs to fully customized builds with your configurations.

Step-by-Step Guide

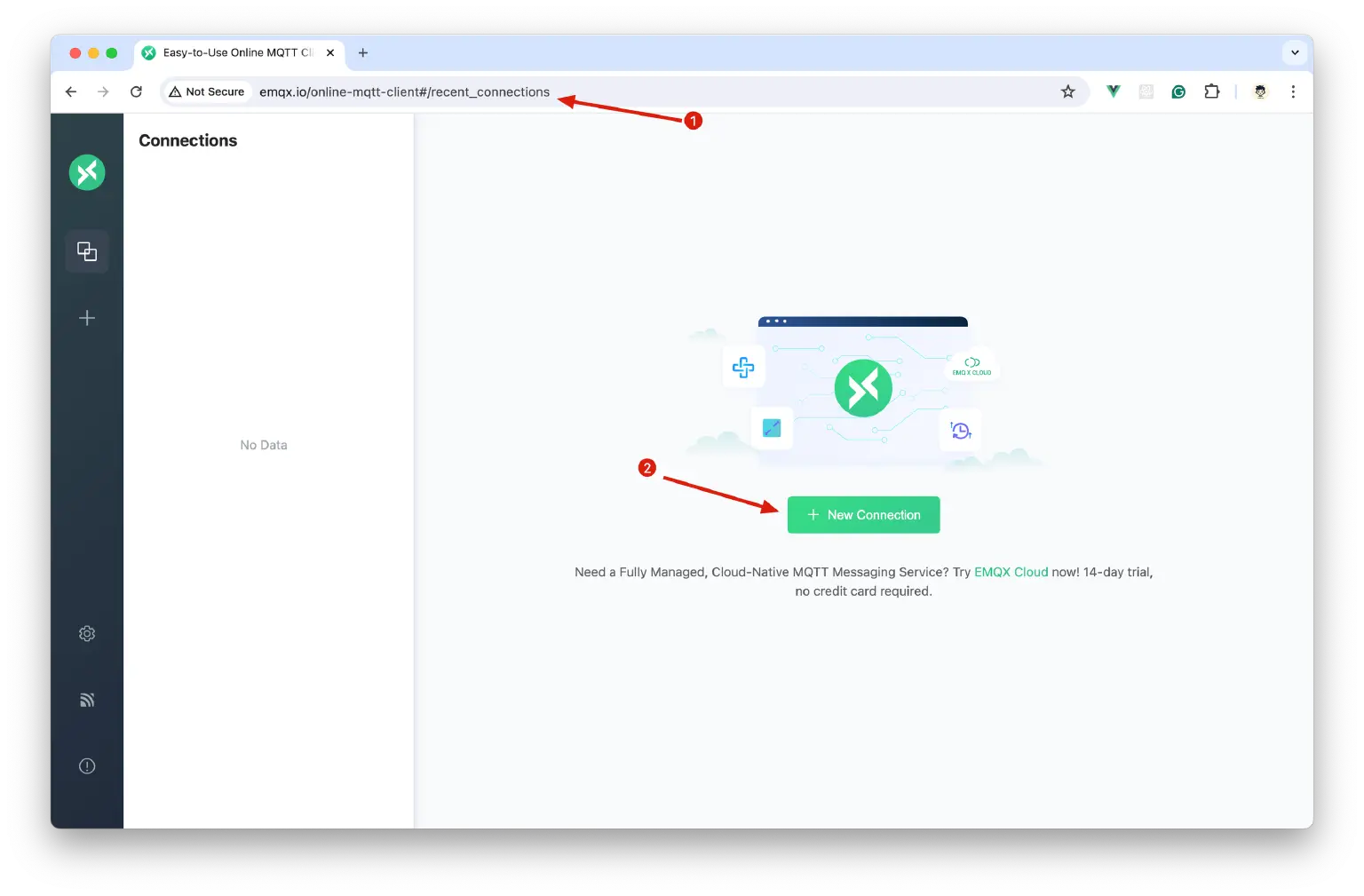

  1. Open the Web Page: Navigate to MQTTX Web.

    Open the Web Page

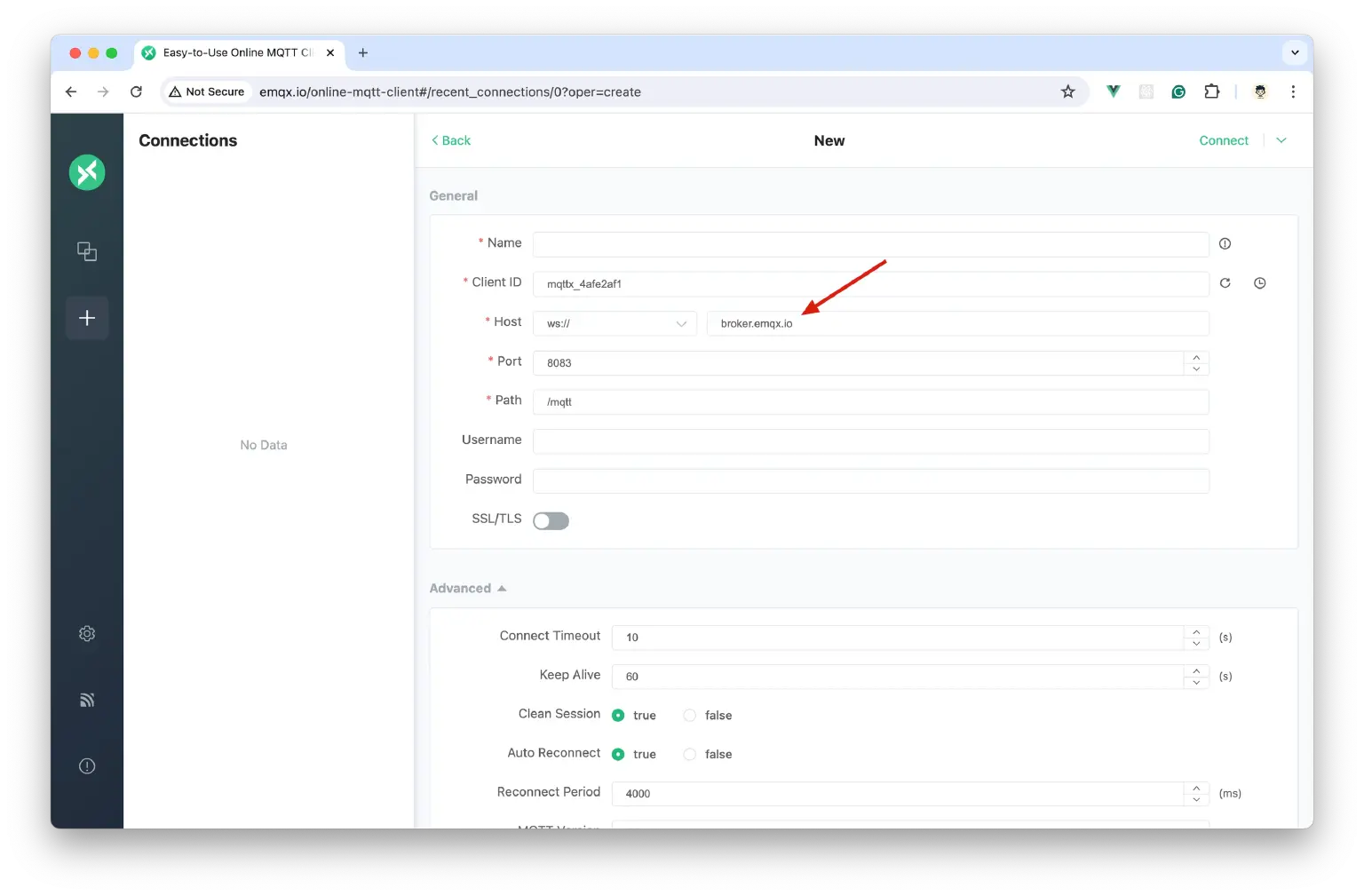

  2. Create a Connection: Use the default broker.emqx.io or your broker's address.

    Create a Connection

  3. Subscribe to a Topic: Once connected, subscribe to a topic of your choice.

    Subscribe to a Topic

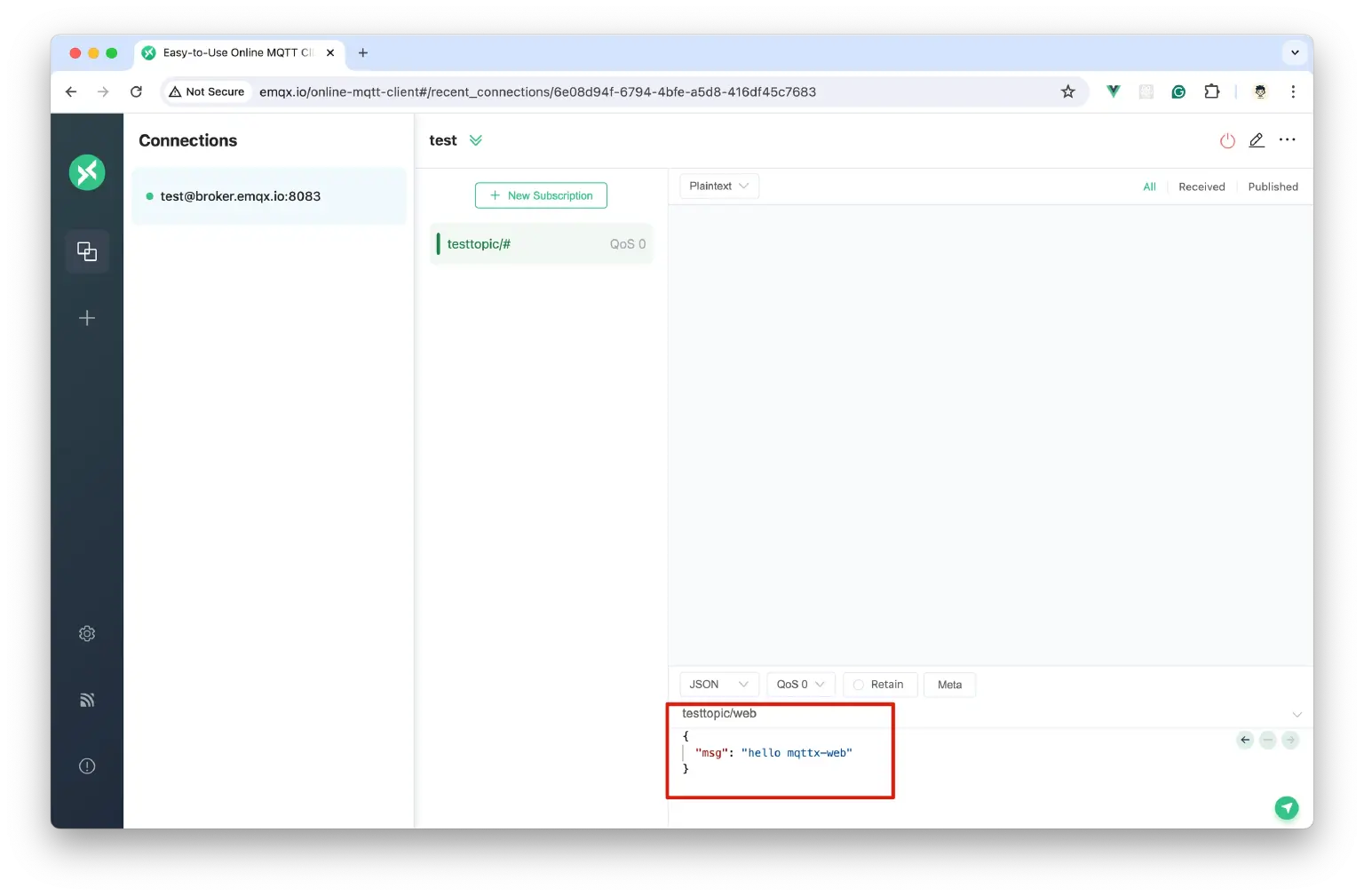

  4. Publish a Message: Enter a topic and payload below, then send your message.

    Publish a Message

  5. Receive Messages: See your message to arrive at the subscribed topic, confirming successful communication.

    Receive Messages

    For more detailed usage instructions and additional configuration options, please visit our documentation at https://mqttx.app/docs/web.

Q&A about Online MQTT Clients

What are the disadvantages of using an online client?

The primary disadvantages are the limitations imposed by browser environments, such as the exclusive use of WebSocket for connections, which means no support for TCP connections or SSL/TLS mutual authentication.

How is data security handled?

Despite being deployed on public servers, the configuration information and messages in an online client are stored locally in the browser. This setup ensures privacy and security by preventing data from being stored or processed on the server.

Why is the public address using HTTP instead of HTTPS?

HTTP over HTTPS is due to compatibility with MQTT over WebSocket connections. HTTPS requires using wss (WebSocket Secure) for secure connections, but not all testing environments can provide wss connections. To accommodate ws (WebSocket) connections, HTTP ensures broader accessibility.

What are the differences between MQTTX Web and Desktop?

The core functionalities of MQTTX Web and MQTTX Desktop are consistent, yet several differences arise from the web platform's inherent limitations:

  • MQTTX Web only supports connections via WebSocket, not TCP.
  • Due to browser constraints, MQTTX Web does not support two-way SSL/TLS authentication.
  • Certain features available in the Desktop version, such as data import/export, script execution, and access to logs, are absent in the Web version. However, efforts are ongoing to synchronize and update the Web version with the latest features from the Desktop version.

Summary

Utilizing an online MQTT client facilitates quick connections for developing and debugging MQTT services. Despite its ease of use, browser limitations exist, such as reliance on WebSocket and lack of TCP or SSL/TLS mutual authentication. Nevertheless, the immediate accessibility and testing capabilities it offers make it an invaluable tool for both novices and experienced developers in navigating MQTT projects efficiently.
