How to Deploy MQTT on Docker: A Complete Guide

Introducing MQTT on Docker

MQTT (Message Queuing Telemetry Transport) is a lightweight, efficient messaging protocol optimized for low-bandwidth, high-latency networks, making it ideal for IoT applications. Docker, an open-source platform, enables automated deployment, scaling, and management of applications in containers.

Running MQTT on Docker combines the protocol’s efficiency with Docker’s portability and scalability. The MQTT broker receives messages from publishers (devices or applications that generate data) and forwards them to subscribers (devices or applications that consume the data). This offers a robust solution for real-time data streaming

This guide explains how to deploy an MQTT broker in a Docker container using EMQX, a leading MQTT broker. We’ll cover setup, clustering, persistence, and the benefits of using MQTT with Docker for scalable IoT deployments.

Why Run an MQTT Broker on Docker?

Running an MQTT broker on Docker provides several advantages.

• Rapid deployment: Docker containers can be started in a matter of seconds, which means your MQTT broker can be up and running quickly.
• Isolation: Docker containers run in isolation from each other, ensuring that the broker's processes do not interfere with each other or with the host system. This lets you run multiple instances of the MQTT broker on the same host without any conflicts.
• Scalability: Docker allows you to scale your MQTT broker horizontally (by adding more containers) or vertically (by adding more resources to a container). This scalability allows you to handle larger data or transaction volumes. You can automate scalability for large deployments with an orchestrator like Kubernetes (read our guide to MQTT with Kubernetes).
• Portability: Docker containers can run on any system that has Docker installed, regardless of the underlying operating system. This means you can build your MQTT broker on your local system, test it, and then deploy it reliably on any cloud or on-premise server.

Setting Up an MQTT Broker in Docker with Clustering and Persistence

EMQX is the leading MQTT broker with high performance and scalability. It provides a Docker Official Image which is available on Docker Hub.

A major advantage of EMQX is that it supports clustering for large scale MQTT deployments. Most other articles on this topic show how to set up the Mosquitto MQTT broker with Docker - but Mosquitto does not support clustering.

Additional EMQX features include:

• Ability to scale up to 100M+ IoT devices in 1 cluster, while maintaining 1M message per second throughput and sub-millisecond latency.
• 100% compliant with MQTT 5.0 and 3.x, support for multiple open standard protocols like HTTP, QUIC, and WebSocket.
• Secures bi-directional communication with MQTT over TLS/SSL and various authentication mechanisms.
• Uses powerful SQL-based rules engine to extract, filter, enrich and transform IoT data in real-time.
• Ensures high availability and horizontal scalability with a masterless distributed architecture.
• More than 20K+ enterprise users across 50+ countries and regions, connecting 100M+ IoT devices worldwide. Trusted by over 400 customers in mission-critical scenarios including over 70 Fortune 500 companies.

Getting Started with MQTT on Docker Using EMQX

Here is how to use the EMQX Docker image to quickly get up and running with MQTT.

Install Docker

To install Docker, open a terminal window and install Docker using the appropriate command for your operating system. If you're using Ubuntu, for example, you'd use the following command:

sudo apt-get update
sudo apt-get install -y docker-ce docker-ce-cli containerd.io

Once the installation is complete, you can confirm that Docker is running by typing:

sudo systemctl status docker

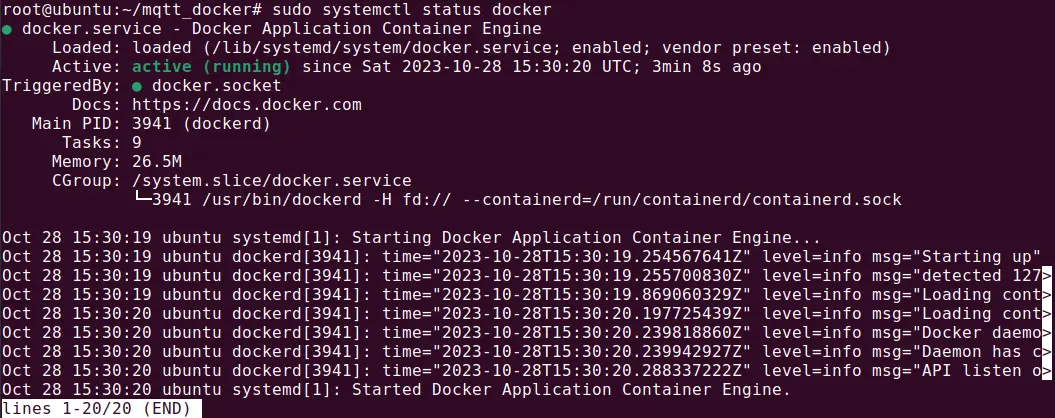

The output should look like this:

If everything is set up correctly, you should see Docker listed as active (running).

Pull the EMQX Broker Image

To get started with EMQX, the first step is to download the EMQX Docker image from Docker Hub. Open your terminal and run the following command:

docker pull emqx:latest

This command fetches the latest EMQX broker image and prepares it for use on your machine.

Run the EMQX Broker Image

After pulling the image, you can start a new EMQX container. Use the following command to run the EMQX Docker image:

docker run -d --name emqx -p 18083:18083 -p 1883:1883 emqx:latest

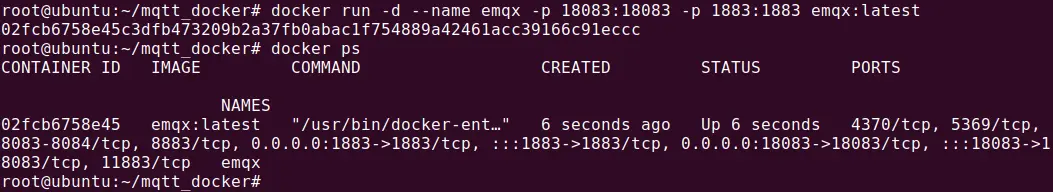

We can check if the container is running by executing the docker ps command. The output should look like this:

Here, the -d flag runs the container in detached mode. Ports 18083 and 1883 are mapped to your host machine, allowing you to interact with the EMQX broker. The EMQX broker runs as the Linux user emqx inside the container.

Set MQTT Configuration

You can set configurations via environment variables when running your Docker container. All EMQX settings in etc/emqx.conf can be configured this way (to learn about EMQX configuration options, refer to the official documentation).

Environment variables with the prefix EMQX_ map to key-value pairs in the configuration files. For example, here's how to set the MQTT TCP port to 1883:

docker run -d --name emqx -e EMQX_LISTENERS__TCP__DEFAULT__BIND=1883 -p 18083:18083 -p 1883:1883 emqx:latest

In this example, EMQX_LISTENERSTCPDEFAULT__BIND=1883 sets the MQTT TCP port to 1883. The -e flag specifies the environment variable.

Set Up Clustering

Before proceeding with this step, please ensure docker-compose is installed on your system.

For clustering, you can create a docker-compose.yaml file as follows:

version: '3'
services:
  emqx1:
    image: emqx:latest
    container_name: emqx1
    environment:
      - "EMQX_NAME=emqx1"
      - "EMQX_HOST=emqx1.emqx.io"
      - "EMQX_CLUSTER__DISCOVERY_STRATEGY=dns"
      - "EMQX_CLUSTER__DNS__RESOLVER=8.8.8.8"
      - "EMQX_CLUSTER__DNS__INTERVAL=5000"
    networks:
      emqx-net:
        aliases:
          - emqx1.emqx.io
    ports:
      - "1883:1883"
      - "8083:8083"

  emqx2:
    image: emqx:latest
    container_name: emqx2
    environment:
      - "EMQX_NAME=emqx2"
      - "EMQX_HOST=emqx2.emqx.io"
      - "EMQX_CLUSTER__DISCOVERY_STRATEGY=dns"
      - "EMQX_CLUSTER__DNS__RESOLVER=8.8.8.8"
      - "EMQX_CLUSTER__DNS__INTERVAL=5000"
    networks:
      emqx-net:
        aliases:
          - emqx2.emqx.io
    ports:
      - "1884:1883"
      - "8084:8083"

networks:
  emqx-net:
    driver: bridge

Then run the cluster with this command:

docker-compose -p my_emqx up -d

To view the cluster status, run:

docker exec -it emqx1 sh -c "emqx_ctl cluster status"

The output should look like this:

Set Up Persistence

To persist container data, EMQX requires the following directories to be saved:

• /opt/emqx/data
• /opt/emqx/etc
• /opt/emqx/log

To make these directories persistent, use volume mounts in your docker-compose.yaml file like so:

services:
  emqx:
    # ... previous configurations
    volumes:
      - vol-emqx-data:/opt/emqx/data
      - vol-emqx-etc:/opt/emqx/etc
      - vol-emqx-log:/opt/emqx/log

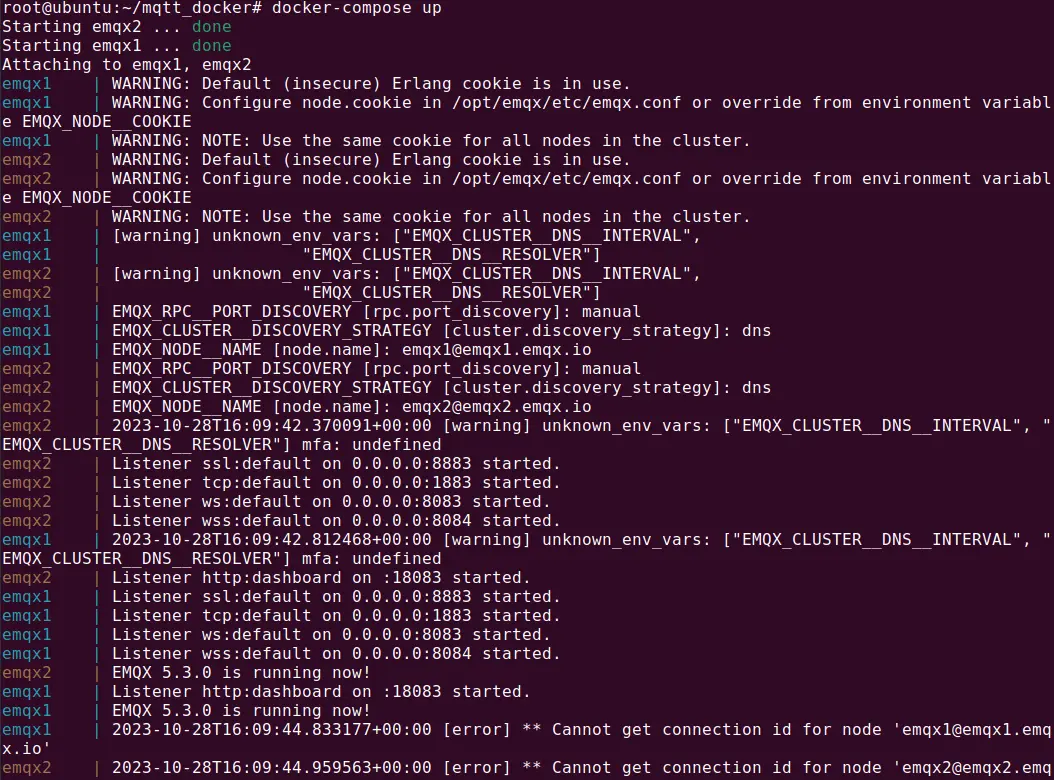

The output should look something like:

To ensure the same state when the container restarts, make sure to specify the EMQX_NAME and EMQX_HOST variables as previously defined.

Best Practices for MQTT on Docker

• Monitor Performance: Use EMQX’s dashboard (accessible at http://localhost:18083) to monitor connections and throughput.
• Secure Your Broker: Enable TLS/SSL and authentication to protect IoT data.
• Optimize Resources: Adjust container resource limits (CPU, memory) based on your workload.
• Backup Data: Regularly back up persistent volumes to prevent data loss.

Conclusion

Deploying MQTT on Docker provides a scalable, portable, and efficient solution for IoT and real-time applications. For those looking to set up MQTT on Docker with clustering and persistence, EMQX proves to be a powerful choice. EMQX's support for clustering, compliance with MQTT standards, and advanced features make it suitable for large-scale MQTT deployments.

Follow these guides to set up your MQTT Docker environment and explore clustering and persistence for large-scale use cases.
